Contactors AX SERIES
Contactors and contactor relays To keep things running you need control
ABB offers a comprehensive selection of contactors for simple and extreme application as well as products with specific purposes. The AF contactor technology revolutionizes how we use contactors and allows use in all parts of the world and in all network conditions. Furthermore, mini-contactor range offers compact dimensions and specific connection possibilities. The AS contactor is efficient and allows you to optimize your equipment design. You can choose terminals between screw, push-in spring and ring tongue through our ranges. So whatever your need of a contactor might be, ABB will have a variant meeting just that.

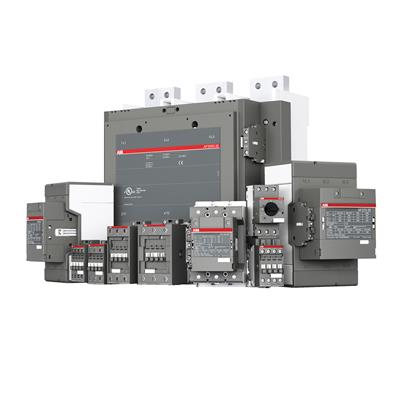

Contactors AF SERIES:
Secure uptime and optimize stocks with AF latest technology up to 2850 A
Featuring AF technology as standard, AF contactors establish the industry benchmark. The integrated electronically controlled coil offers multiple benefits over conventional alternatives, and together with ABB’s wide product offering, an optimal configuration, every time.
Read More
Main benefits
Optimize logistics and cut administration costs with fewer product variants to handle
Access global support and use the same products in all parts of the world: the 100 … 250 V AC/DC coil covers all standard network voltages
Push-in Spring terminals offer only one push for extremely fast wiring: faster than ever installation, easier than ever wiring, reliable as ever connections
A reduction of the coil’s energy consumption by 80% lets you save energy
Secure your uptime by letting the AF technology overbridge voltage drops and sags.
Main features
Up to 560 kW – 400 V AC-3, 900 hp – 480 V and 2850 A – 690 V AC-1, 2850 A – general use
Only 4 coils cover 24 V – 500 V AC and 20 V – 500 V DC
Dedicated 24 V DC coil for direct control by PLC-output > 250 mA, low holding consumption up to 1.7 W.
Screw, Push-in Spring and ring tongue connection types
Built-in surge suppression
Connection sets and interlock unit for reversing and star-delta starter for an easy, fast and secure assembly of starters
Mirror and mechanically linked contacts.

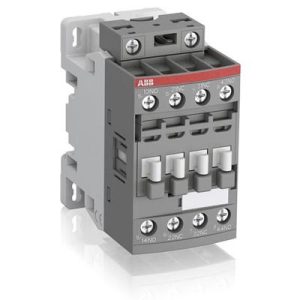

Contactor Relays NF SERIES:
Secure uptime and optimize stocks with AF latest technology
NF contactor relays are featuring AF technology as standard. The electronically controlled coil offers multiple benefits over conventional alternatives, and together with ABB’s wide product offering, an optimal configuration, every time.
Read More
Main benefits
Optimize logistics and cut administration costs with fewer product variants to handle
Access global support and use the same products in all parts of the world
A reduction of the coil’s energy consumption by 80% lets you save energy
Secure your uptime by letting the AF technology overbridge voltage drops and sags.
Main features
4 and 8-pole ranges available, 8-poles with permanently fixed 4-pole auxiliary contact block
Screw, spring and ring tongue connection types available
Built-in surge suppression
Overlapping of lagging / leading contacts for NF33/11 and NF51/11 variants
Easy-to-use accessories through snap-to-connect function
Mechanically linked contacts.
