Moulded Case Circuit Breakers
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan

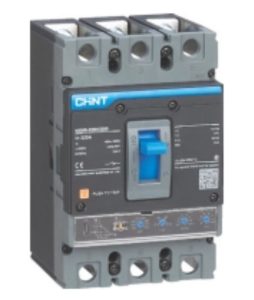

NXM Series
General Information
The moulded case circuit breaker provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non frequent start of motor.
Read More
▪ Rated operational voltage: Ue : 220V/230V/240V, 380V/400V/415V, 500V , 690V
▪ Breaking capacity code: E, S, F, H
▪ Number of poles: 2P, 3P, 4P
▪ Release type:thermal magnetic fixed type; magnetic fixed type; electronic type.
▪ Installation method: Fixed type; plug-in type

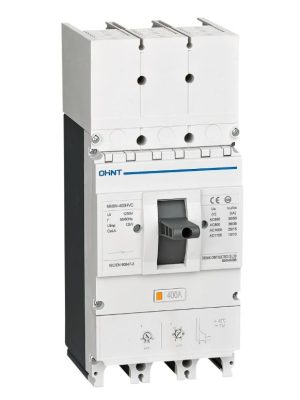

NM8N-HV Series
General Information
Read More
Rated Voltage Ue(V)： AC 690/800/1000/1150 ;
Frame Size current: 250, 400, 630;
Rated insulation voltage: 1250V
Rated impulse withstand voltage: 8kV ( frame size: 250A) 12kV ( frame size: 400A, 630A)
Rated ultimate short-circuit breaking current(kA) @AC800v : 36, 50
Rated service breaking current(kA)@AC800v : 36, 50 (Please refer to the catalog for details)
Selectivity category: A
Poles: 3P

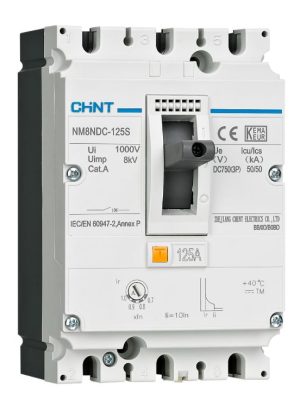

NM8N-DC Series
General Information
NM8N series moulded case circuit breaker is suitable for the circuit of AC 50/60Hz, with rated voltage AC690V and below, DC system rated voltage DC1000V and below, and rated current of 16A and 1600A. It can protect circuits and electric equipment against overload, short circuit or undervoltage, and can also provide protection of overload, short circuit and under voltage for infrequent start of motor.
