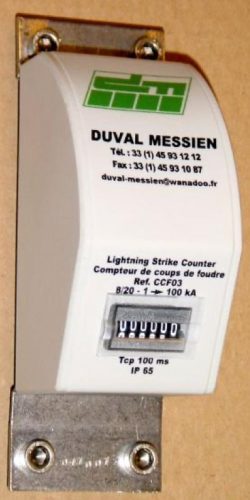

Impact Controller CCFO3 Counter
General Information
The CCF03 counter is designed to count lightning
strike shocks circulating in lightning protection
installation down conductors. The counter device is
electromechanical and works without any power
supply.
Technical characteristics:
Size : 150 x 60 x 50 mm
Weight : 530 g
Working temperature range : from -10 to +60°C
Protection Degree: IP 65
Display : 4 digits
Starting threshold : from 1kA in 8/20 wave to 100 kA in 10/350 wave
Minimum time between 2 shocks : 100 ms
Connector : For round Ф from 8 to 10mm and ribbon 30×2
