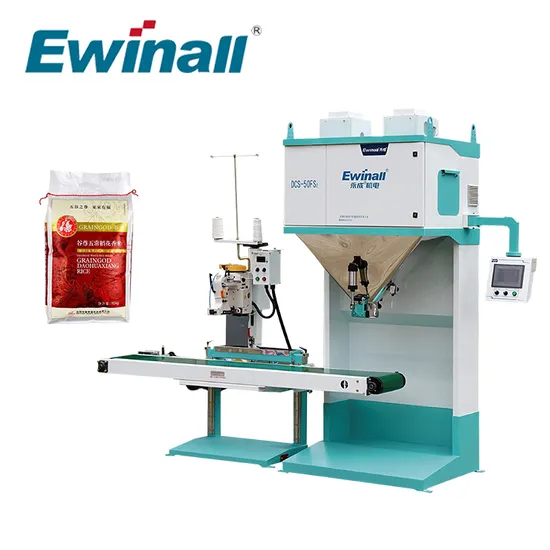

DCS-50FS2 5–25kg High-Precision Rice Packing Machine for Grain & Rice Packaging
Key Features
1. Dual-Core PLC & Weighing Control
Equipped with a weighing instrument + PLC dual-core control system, with 480 A/D conversions per second, ensuring fast and highly accurate weighing performance.
2. Three-Sensor Weighing Structure
Balanced layout of weighing hoppers improves stability, anti-interference ability, and machine lifespan, even under workshop vibrations.
3. Intelligent One-Key Package Switching
Automatically adjusts the feeding device and conveyor for different bag types and materials, optimizing weighing speed and accuracy for the best system performance.
4. Friendly Man-Machine Interface
User-friendly interface simplifies operation, reduces labor intensity, and supports intelligent storage of production reports and data communication.
5. Food Safety & Sanitation
All material contact parts, including feeding and weighing barrels, are made of stainless steel, polished to eliminate dead corners, preventing residual rice spoilage.
6. Corrosion & Rodent Protection
Closed design with steel wire grooves or protective iron boxes for sensors, solenoid valves, and cylinders, extending trouble-free running time.
7. Servo Transmission & Accurate Weighing
Servo control ensures high-speed, precise weighing, with reliable and robust mechanical structure.
8. Multi-Functional Bag Sealing
Rotating column design supports sewing, heat sealing, hemming, and multiple sealing methods for different packaging types. Optional folding and heat-sealing machines are available.
9. Left- & Right-Hand Operation Friendly
Pocket switches are interchangeable, offering equal convenience for left- or right-hand operation.
10. Adjustable Sliding Column
Supports various bag-sewing methods and operating distances for customizable production setups.
11. Intelligent Sewing Machine Lubrication (Optional)
Multi-point oil spray system ensures regular and precise lubrication of key moving parts, reducing maintenance needs.
12. Fresh-Keeping Gas Input Function (Optional)
Locks in freshness for rice packaging, meeting personalized customer requirements.
Technical Specifications
| Model | DCS-50FS2 |
| Weighing range | 5~25kg |
| Display Mode | Color screen display and control |
| Weighing speed | 800~1200 Bags/Hours |
| Graduation value | 1g |
| Accuracy level | X(0.2) |
| Power Gas consumption | 2kW,(0.4~0.5)MPa 16.7L/min |
| Working environment | Relative humidity≤90%, temperature (0~40)ºC |
| Power requirements | AC220V±5% 50Hz;AC380V±5% 50Hz |
| Dimension(mm) | 3483×1091×2736 |
