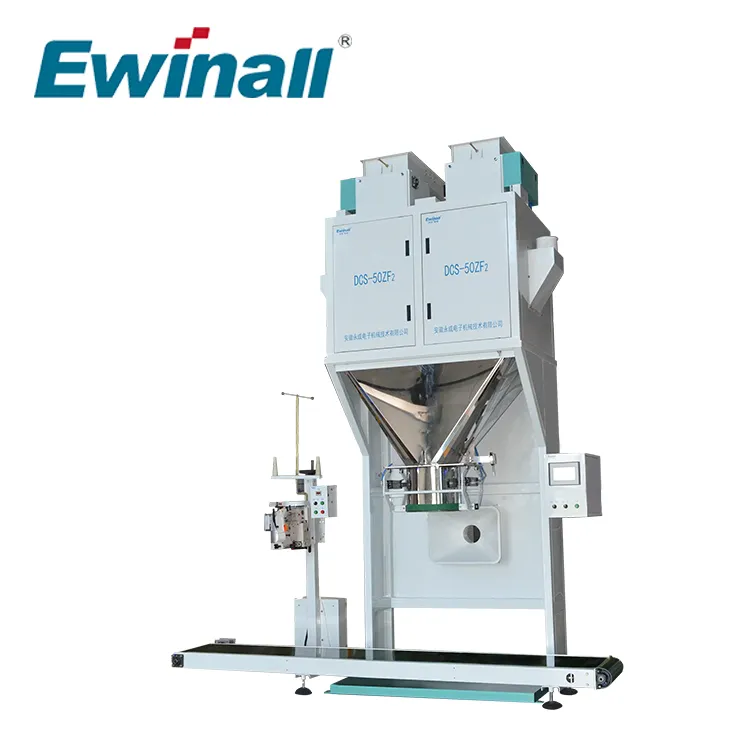

DCS-50ZF2 40–50kg Advanced Rice Husk Powder Packing Machine for High-Speed Flour Packing
Key Features
1. Reliable Conveyor System
The conveyor uses manual lifting technology, and all core components are from internationally recognized brands, ensuring advanced functionality, stability, and reliability.
2. High-Speed & Accurate Feeding Mechanism
Equipped with a specially designed double-pair cage feeding mechanism, combined with the controller’s advanced algorithm, achieving fast and precise quantitative packaging.
3. High-Precision Weighing & Control
Uses high-precision weighing sensors and quantitative controllers. The controller features a high-performance A/D converter with a conversion rate of 200 times per second and an input sensitivity of 0.5 μV/d, ensuring high measurement accuracy and excellent stability.
4. Manual Control Mode
Allows manual operation of the feeding and bag loosening mechanisms, making it easy to clean agglomerated or blocked materials.
5. Over-Tolerance Alarm
Built-in over-tolerance alarm improves quality control by alerting operators immediately when the weight exceeds limits.
6. Simple & Fully Automatic Operation
Easy for operators: just place the bag and activate the bag clip switch or foot switch. Feeding, bag filling, and bag unloading are completed automatically, minimizing labor and improving efficiency.
Technical Specifications
| Model | DCS-50ZF2 |
| Display method | Touch screen |
| Weighing range (kg) | 40~50 (crushed rice husk) |
| Division value (g) | 10 |
| level of accuracy | X(0.2) |
| Weighing speed (bag/hour) | 400~500 |
| Power consumption, gas consumption | 1.1kW, (0.4~0.5) Mpa compressed air 16.7L/min |
| Working environment | Relative humidity≤90%, temperature (0~40)ºC |
| Power requirements | AC220V±5% 50Hz;AC380V±5% 50Hz |
| Dimensions (mm) | 3300×1045×3790 |
