Flow Scale
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan
At Ameejee Valeejee & Sons Pvt. Ltd. (AVS), we are proud to be the official partner and service provider for EwinAll Packaging Machinery in Pakistan. Through our extensive nationwide network, we bring EwinAll’s globally trusted, high-performance packaging machines to food, agriculture, and industrial processing units across the country — with full technical support, 24/7 service, and genuine spare parts.

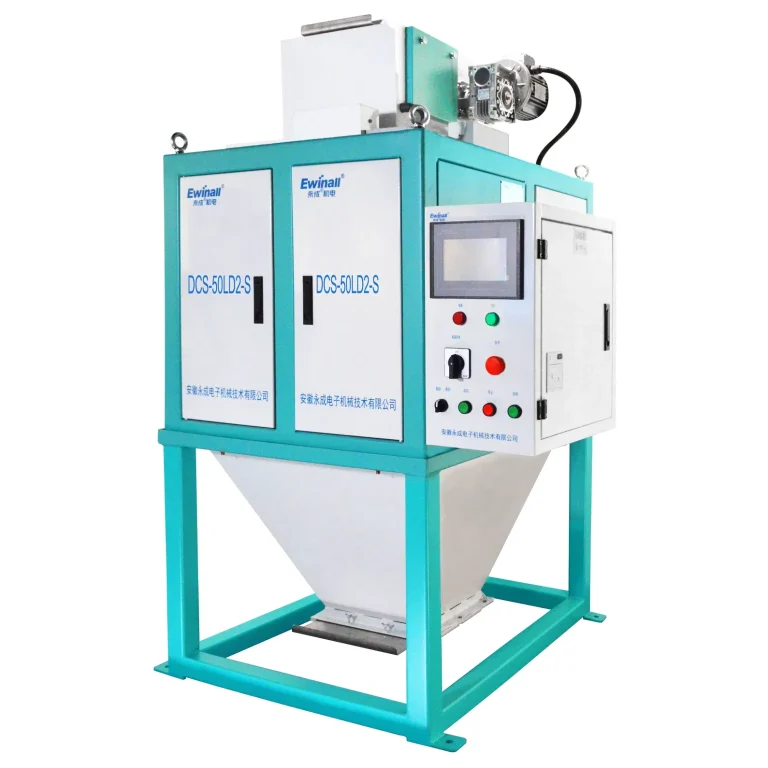

DCS-LD Series Rice, Bean & Corn Flow Scale for Fast & Accurate Weighing
Key Features
1. Three-Sensor Weighing Support
Specially designed three-sensor support eliminates stress point offset and signal distortion caused by uneven material distribution in the weighing hopper, ensuring high weighing accuracy and stability.
2. Sealed Sensor Studio
The specially designed sealed sensor housing isolates sensors from rice flour, dust, and water vapor, greatly prolonging trouble-free operation time.
3. Motor-Driven Action Mechanism
Unique motor-driven mechanism requires no working air source, simplifying installation and maintenance.
4. Manual & Automatic Control Modes
Supports both manual and automatic operation. Manual mode allows separate control of feeding and bagging mechanisms for easy cleaning of agglomerated or blocked materials. In automatic mode, the flow scale begins continuous measurement and discharge after the target value is set.
5. High-Precision Weighing & Control System
Equipped with high-precision weighing sensors and quantitative controllers. The controller features a high-performance A/D converter with 240 conversions per second and 0.5 μV/d input sensitivity, ensuring high accuracy and stable operation.
6. Intelligent Data Management
Supports automatic statistics, printing, and data communication of output for production monitoring and traceability.
7. Food-Safe & Durable Materials
All parts in contact with the material are made of stainless steel, providing corrosion resistance and prolonging equipment service life.
Specification
| Model | DCS-50LD | DCS-100LD | DCS-200LD | DCS-300LD | DCS-400LD |
| Display method | Instrument display and control | Instrument display and control | Instrument display and control | Instrument display and control | Instrument display and control |
| Division value | 10g | 10g | 20g | 20g | 50g |
| Level of accuracy | X0.5 | ||||
| Measuring capacity (kg/h) | ≤20000(Paddy) | ≤40000(Paddy) | ≤60000(Paddy) | ≤80000(Paddy) | ≤100000(Paddy) |
| Power consumption | 0.9kW | 1.1kW | |||
| Working environment | Relative humidity≤90%, temperature (0~40)ºC | ||||
| Power requirements | AC220V±5% 50Hz;AC380V±5% 50Hz | ||||
| Dimensions (mm) | 1031×1130×1769 | 1146×1270×1911 | 1320×1400×2856 | 1520×1570×2926 | 1670×1944×3323 |
