Blending & Mixing Scales
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan
At Ameejee Valeejee & Sons Pvt. Ltd. (AVS), we are proud to be the official partner and service provider for EwinAll Packaging Machinery in Pakistan. Through our extensive nationwide network, we bring EwinAll’s globally trusted, high-performance packaging machines to food, agriculture, and industrial processing units across the country — with full technical support, 24/7 service, and genuine spare parts.

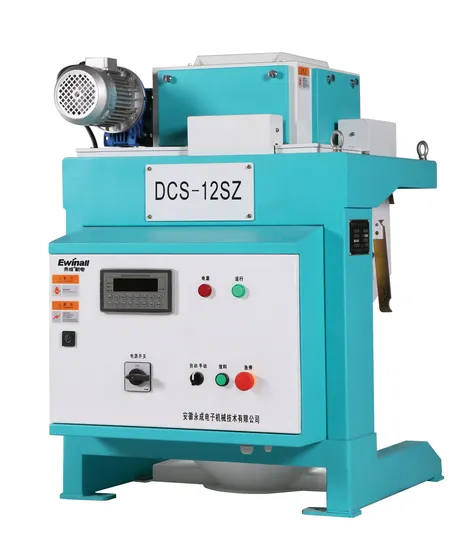

DCS-SZ Series Precision Digital Scale for Accurate Blending of Beans & Rice for High-Precision Blending
Key Features
1. Advanced Dual-Core PLC Weighing System
Equipped with a state-of-the-art weighing instrument and PLC dual-core technology, performing 480 A/D conversions per second, ensuring fast, highly accurate, and stable operation.
2. Innovative Three-Sensor Structure
Balanced layout of the weighing cylinder optimizes force distribution, enhancing stability, longevity, and resistance to workshop vibrations.
3. Food Safety & Hygiene
Material contact parts, including feeding and weighing components, are made of premium stainless steel and polished to eliminate residues, preserving ingredient purity and maintaining top hygiene standards.
4. Protective Enclosure Design
Closed studio design with steel wire grooves or protective iron enclosures safeguards sensors, solenoid valves, and circuit lines from rodents, corrosion, and environmental damage, extending equipment lifespan.
5. Motor-Driven Mechanism
Independent of air sources, the motor-driven mechanism uses advanced PID control for high-precision flow control, dynamic stability, and simplified, reliable operation.
6. User-Friendly Automatic Operation
Set the desired flow target and activate the automatic switch; the system seamlessly transitions into automatic measurement and discharge, simplifying operation.
7. Intelligent Data Management
Supports automatic flow statistics, printing, and data communication, allowing comprehensive monitoring and reporting.
8. Uniform Material Discharge
Intermittent feeding combined with continuous discharging ensures consistent material flow and preserves material integrity.
9. Safety Error Alarm
In case of errors, all connected devices halt immediately, providing proactive safety measures and preventing operational issues.
Specification
| Model | DCS-6SZ | DCS-12SZ | DCS-20SZ | DCS-40SZ | |
| Range | (300~6000)kg/h | (300~12000)kg/h | (2000~20000)kg/h | (5000~40000)kg/h | |
| The division | ±0.5% | ±0.3% | ±0.5% | ±0.3%~±0.5% | |
| Power | AC 380V ±5% ,50HZ | ||||
| average power | 100W | 140W | 140W | 140W | |
| maximum instantaneous power | ≤ 260W | ≤ 460W | ≤ 460W | ≤ 460W | |
| working environment | -10ºC~40ºC Humidity <90% no condensation | ||||
| environmental vibration | amplitude:≤1mm ; frequency:≤25 HZ | ||||
| Dimension(mm) L×W×H | 740×784×828 | 819×828×1035 | 988×1159×1075 | 1375×1330×1326 | |
