Split Case Fire Pumps
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan
8100 Series Horizontal Split Case
Product Features
- UL listed and FM approved
- 100 to 3000 GPM, 40 to 230 PSI
- Cast Iron Bronze Fitted, Ductile Iron “H” casing option for high pressure
- Flex coupled
- Electric motor or diesel engine driven
- Common flange centerline
- Single piece stuffing box
Read More
General Description
Downloads

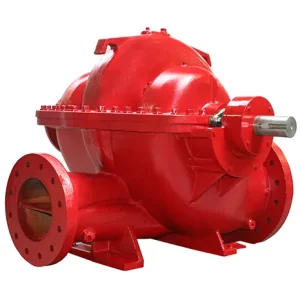

8150 Series Horizontal Split Case
Product Features
- UL listed and FM approved
- 1500 to 5000 GPM, 97 to 261 PSI
- Ductile Iron Bronze Fitted
- Flex coupled
- Electric motor or diesel driven
- Common flange centerline
- Bolt-on bearing housing
Read More
General Description
AC Fire Pump offers a range of split case pumps with spacing-saving designs to simplify pump room layout. The 8150 Series pump is designed for low horsepower requirements in high flow applications.
The fire pump is intended to provide water to stand pipe, sprinkler, chemical mitigation and hydrant systems for fire suppression in industrial and commercial facilities. Suction and discharge flanges are on a common centerline for easy installation. Impellers are dynamically balanced to reduce vibration and potential wear. In compliance with NFPA #20, UL, ULC, FM and ANSI.
Downloads

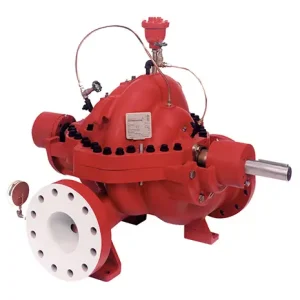

8200 Series Horizontal Split Case
Product Features
- UL listed and FM approved
- 500 to 1000 GPM, 70 to 440 PSI
- Single suction, 2 stage design
- Cast Iron Bronze Fitted, Ductile Iron “H” casing option for high pressure
- Flex coupled
- Electric motor or diesel driven
- Horizontally offset flange centerline
- Bolt-on stuffing box
Read More
General Description
Downloads

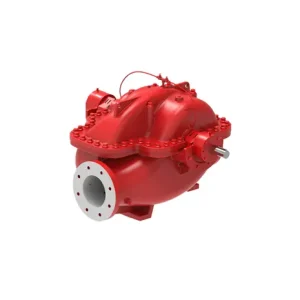

8250 Series Horizontal Split Case
Product Features
- UL, ULC, NFPA, #20 and FM compliant
- Capacities in 1250 GPM (284m³/hr) and 1500 GPM (341m³/hr)
- Pressure up to 395PSI (278m)
- Ductile iron, stainless steel fitted construction
- Dynamic balance impellers
- Electric or diesel engine driven models
Read More
General Description
Xylem’s 8250 Series by AC Fire Pump are two stage, high pressure horizontal split case pumps designed to provide water to stand pipe, sprinkler, chemical mitigation, and hydrant systems for fire suppression in industrial and commercial facilities. It is designed for low horsepower requirements in high flow applications.
AC Fire Pump offers a range of split case pumps with spacing-saving designs to simplify pump room layout. The 8250 Series Fire Pump is available for 50 cycle and diesel engine applications. In compliance with NFPA #20, UL, ULC and FM.
Downloads

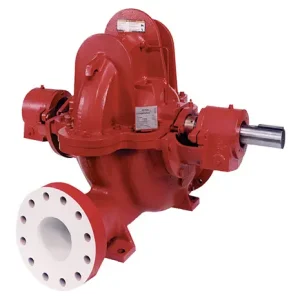

9100 Series
Product Features
- UL listed and FM approved
- 500 to 5000 GPM, 90 to 205 PSI
- Cast Iron Bronze Fitted, Ductile Iron “H” casing option for high pressure
- Flex coupled
- Electric motor or diesel driven
- Common flange centerline
- Bolt-on stuffing box
Read More
General Description
AC Fire Pump offers a range of split case pumps with spacing-saving designs to simplify pump room layout. The 9100 Series fire pump is designed for low horsepower requirements and to provide water to stand pipe, sprinkler, chemical mitigation and hydrant systems for fire suppression in industrial and commercial facilities. Suction and discharge flanges are on a common centerline for easy installation. Impellers are dynamically balanced to reduce vibration and potential wear. In compliance with NFPA #20, UL, ULC, FM and ANSI.
Downloads
