Bell & Gossett
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan
Efficiency, performance, and reliability in every drop.
Bell & Gossett is a trusted name in HVAC circulator pumps, booster pumps, and hydronic system solutions.
Renowned for energy efficiency, performance, and reliability, B&G products are ideal for heating, cooling, and
potable water systems in commercial, industrial, and residential projects.

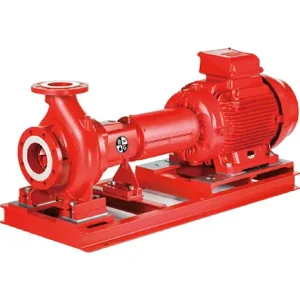

e-1610 Series End Suction Pump
High-Efficiency End Suction Pump
The Bell & Gossett 1610 End Suction Pump is a highly efficient and adaptable solution specifically engineered for HVAC, heating, and water transportation applications. This advanced pump boasts flexible installation options, a diverse range of material constructions, and the ability to operate across a wide temperature range.
Product Features
- High efficiency design
- Available with motor mounted variable speed controller (up to 22 kW)
- True Back Pullout
- Internally Self-Flushing Mechanical Seal
- Computer Controlled Impeller Balancing
- Delivery: up to 1900 m³/h
- Head: up to 160 m
Read More
High efficiency
New designed high efficiency hydraulics well exceeding the ErP2015 level and IE3 motors set the basis for very low operation costs. To optimize the operation costs further, the e-1610 can be equipped with a Hydrovar variable speed pump controller (up to 45 kW). In installations with a big variance in the demand, it can save up to 70% of the energy cost compared to a fixed speed pump.
Long service life and easy maintenance
obust design, different bearing frame sizes and stainless-steel replaceable wear rings ensure a long service life. The e-1610 is also designed for easy maintenance and all service points are easy reachable to reduce downtime.
Exactly the right configuration
The e-1610 is the right solution for 1000’s of liquids. Materials options spans from cast iron to duplex stainless steel and different mechanical face seal options.
The e-1610 end suction pumps come in two configurations:
Frame mounted (bare shaft or complete with coupling and motor)
Stub shaft Close coupled for compact footprint
Downloads

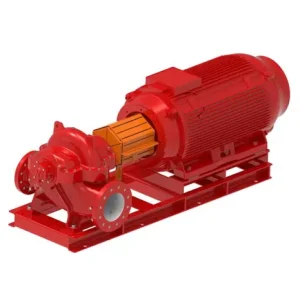

e-HSC Series Double Suction Centrifugal Pumps
Overview
Designed and manufactured by the global leader in hydronic pump technology, the Series e-HSC double suction pump provides engineers, contractors, and building owners a more powerful, serviceable, and efficient solution for a wide range of critical HVAC applications.
Product Features
- Longer running life
- Easily handle large capacity systems and higher head
- Ease of serviceability saves time and reduces downtime
- Suitable for any installation
- Reliable service and rugged engineering you expect
- Optimized to balance efficiency and suction head requirements
Read More
Longer running life
Thanks to a shorter shaft that reduces vibrations, this pump can run up to 3x as long (100,000 hours within the preferred operating range) before the bearings need to be changed.
More powerful
With a flow rate of up to 26,600 gpm the e-HSC can easily handle large capacity systems and higher head.
Ease of serviceability
To save time and reduce downtime, the mechanical seal and bearings can be easily accessed without opening the upper casing. And with the standard spacer coupling, both can be changed easily.
Downloads

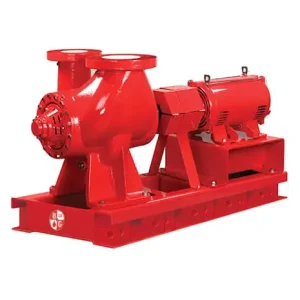

VSX Series Space Saving Double Suction Centrifugal Pumps
Overview
The Bell & Gossett VSX Double-Suction Split-Case Pump has maintenance-free bearings, one-piece unitized Seal, groutless base plate, alignment-friendly coupling, reduced pump room footprint by up to 40% when compared to traditional split-case and vertical inline pumps.
Product Features
- Hydraulic coverage to meet all your design requirements
- Flows from 500 to 28,000 GPM / 114 to 6400 m3/h
- Heads from 30 to 530 feet / 9 to 161 meters
- Working pressures of 175 and 300 psig / 12 and 20 Bar
- ANSI flange ratings of 125# and 250#
- Temperature 0 to 300°F / -17 to 148°C
Read More
Using CFD technology, we can deliver identical performance in any flange configuration. The result is that you can maximize your piping possibilities and meet a broad hydraulic range for chillers, towers, distributive and general pumping requirements.
