Goulds Heating & Cooling Circulators
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan
eco2
Product Features
- Flow rate: up to 4,5 m3/h
- Head: up to 8 m (15 m, eco Solar version)
- Maximum Power Consumption: 55 W
Read More

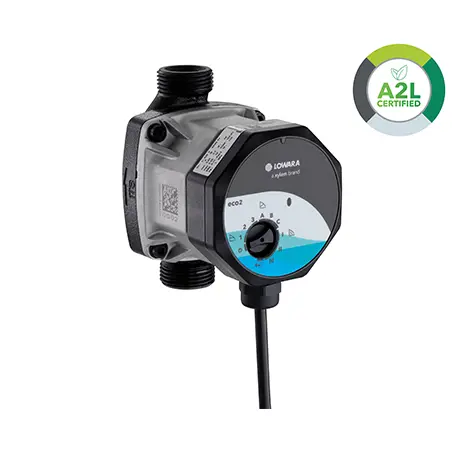

eco2:
Highly efficient circulation pump for heating, cooling and domestic hot water applications, with a wide range of performance and flexibility in its design.
eco2 Solar:
The high-performance circulator series is designed for solar thermal applications. With a head up to 15m wide, high static pressure and wide temperature range, makes this version the best fit for this application.
eco2 Microflow:
are the most efficient solution for the widest range of tap flow (1:10 of minimum and maximum flow) specially designed for freshwater modules.
Technical Features:
Automatic Air-purge
Pump housings: cast iron, stainless steel, composite
Operating Modes: proportional pressure, constant pressure, constant speed, 2 ways PWM; PWM (eco2 Microflow)
Power connection: cable gland, Superseal plug
Human Machine Interface: multifunctional knob to set up all pump functionalities; 1 LED to read pump status
A2L certified according to EU Legislation EN 60335-2-40:2022 industry standards
Downloads

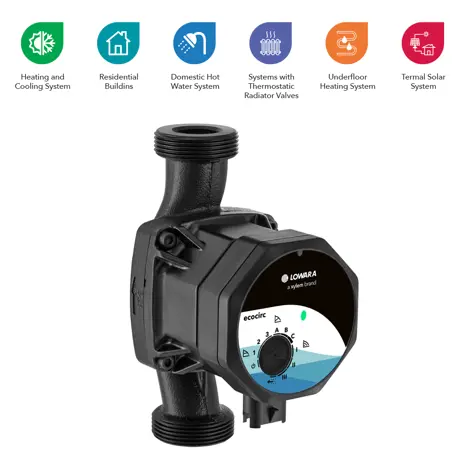

Ecocirc
Product Features
- High efficiency pumps with ECM-technology and permanent magnet rotor
- Low power consumption
- EEI ≤0.18
- Control modes:
- Proportional Pressure
- Constant Pressure
- Constand Speed
- Automatic “air purge”
- Plug
- Insulation shell
- Flow rate: up to 4,5 m³/h
- Head: up to 8 m
Read More
The Goulds Ecocirc circulation pumps are designed for water circulation in heating, air conditioning and domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the residential circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level ≤ 0.18.
Downloads

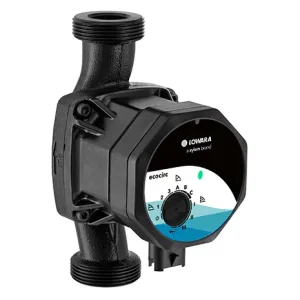

ecocirc High Efficiency Circulators
Product Features
- High efficiency pumps with ECM-technology and permanent magnet rotor
- Low power consumption
- EEI ≤0.18
- Control modes:
- Proportional Pressure
- Constant Pressure
- Constand Speed
- Automatic “air purge”
- Plug
- Insulation shell
- Flow rate: up to 4,5 m³/h
- Head: up to 8 m
Read More
The Goulds ecocirc circulation pumps are designed for water circulation in heating, air conditioning and domestic hot water systems. With 14 models and multiple control modes, the new ecocirc range offers a smarter choice in the residential circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full ecocirc range reaches an EEI level ≤ 0.18.
Downloads

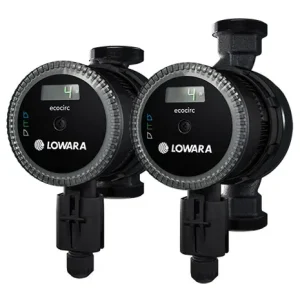

ecocirc PREMIUM High efficiency circulators
Product Features
- High efficiency pumps with ECM-technology and permanent magnet rotor
- Three control modes:
- automatic proportional pressure control
- automatic constant pressure control
- stepless manual set fixed speed
- Display
- Anti-Block technology
- Inrush current limitation
- Plug, easily assembled and connected without any tools
- Automatic air purge
- 4m and 6m versions
Read More
Highly efficient circulators for domestic heating
High efficiency pumps with ECM-technology and permanent magnet rotor. The ecocirc PREMIUM can be operated either on automatically adjusted speed or on manual set speed, which makes it suitable for applications like radiant heating (one- and two pipe systems), underfloor and surface heating, boiler feed, solar stations and similar applications.
The impressively simple shaftless spherical motor design has only one single self-aligning bearing and no shaft, which significantly reduces the number of costly and complicated parts. And of course ecocirc PREMIUM delivers high efficiency, the EEI value exceed the ErP 2015 level.
The ecocirc PREMIUM is a truly reliable circulator featuring Anti-Block technology, dry-run protection and inrush current limitation. The Anti-Block technology efficiently prevents magnetite to enter the rotor chamber thus prevents blockage even in old systems. The dry-run protection and the inrush current limitation protect the motor from being overheated if dry running and damaged by high inrush currents.
Downloads

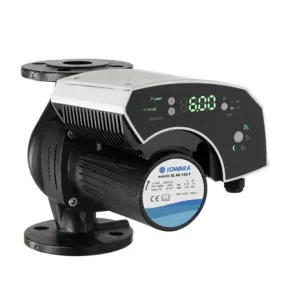

ecocirc XL and XLplus High efficiency circulators
Product Features
- For hot and cold media including geothermal and solar systems
- Different operation modes adopted to all real life situations
- Automatic proportional pressure control (Δpv)
- Constant pressure control (Δpc)
- Differential temperature control (ΔpT)
- Manual set constant speed
- Night setback mode
- Easy to install and start up, no advanced programming necessary
- Communicate with Modbus RTU and BACnet systems
Read More
Highly efficient wet rotor circulator:
The new Goulds ecocirc XL and XLplus are the wet rotor circulators that provide state-of-the-art technology in hydraulics, motors and intelligent controls. The ecocirc XL and XLplus are everything you need in a large wet rotor circulator and nothing you don’t. The purposefully engineered, easy-to-install ecocirc XL and XLplus are designed with simplicity and efficiency in mind.
Downloads

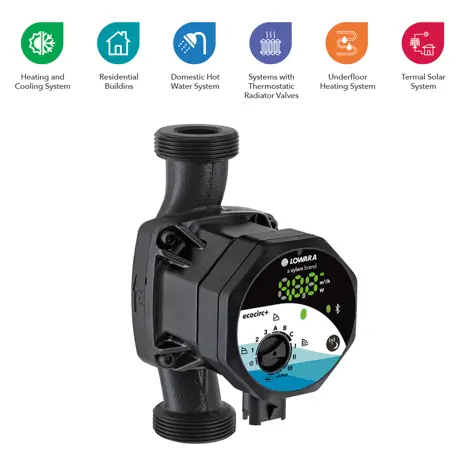

Ecocirc+
Product Features
- High efficiency pumps with ECM-technology and permanent magnet rotor
- Low power consumption
- EEI ≤0.18
- Control modes:
- Proportional Pressure
- Constant Pressure
- Constand Speed
- eAdapt
- Night Mode
- Automatic “air purge”
- Plug
- Reading and setting of the pump by multifunctional knob, multicolor led and digital display
- Insulation shell
- Bluetooth connection
- Flow rate: up to 4,5 m³/h
- Head: up to 8 m
Read More
The Goulds Ecocirc+ circulation pumps are designed for water circulation in heating, air conditioning and domestic hot water systems. With 14 models and multiple control modes the new Ecocirc+ range offers a smarter choice in the residential circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc+ range reaches an EEI level ≤ 0.18.
The ecocirc+ version takes energy savings, simplicity and control to a whole new level. Featuring a digital display and additional operating modes, like Night Mode and eAdapt, it automatically analyzes and adapts itself to the optimal settings, reducing power consumption by up to 80%. Bluetooth connectivity allows you to stay in control from a mobile phone, tablet or laptop.
Downloads
Ecocirc+ | Wet Rotor Circulators
Product Features
- High efficiency pumps with ECM-technology and permanent magnet rotor
- Low power consumption
- EEI ≤0.18
- Control modes:
- Proportional Pressure
- Constant Pressure
- Constand Speed
- eAdapt
- Night Mode
- Automatic “air purge”
- Plug
- Reading and setting of the pump by multifunctional knob, multicolor led and digital display
- Insulation shell
- Bluetooth connection
- Flow rate: up to 4,5 m³/h
- Head: up to 8 m
Read More
The Goulds Ecocirc+ circulation pumps are designed for water circulation in heating, air conditioning and domestic hot water systems. With 14 models and multiple control modes the new Ecocirc+ range offers a smarter choice in the residential circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc+ range reaches an EEI level ≤ 0.18.
Downloads

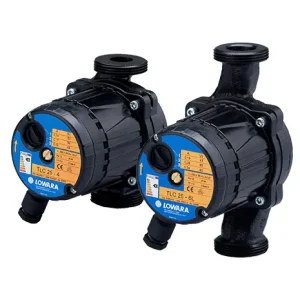

TLC, TLCH Fixed speed circulators
Product Features
- Delivery: up to 12 m³/h
- Head: up to 12 m
Specifications
- Delivery: up to 12 m³/h
- Head: up to 12 m
- Power supply: single-phase 50 Hz
- Power: from 0.03 kW up to 0.40 kW
- Maximum operating pressure: 10 bar
- Temperature of pumped liquid: from -10 °C to 110 °C
Downloads
