Goulds Sewage Pumps
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan
3WD 3″ Non-Clog Sewage Pumps
Product Features
- Cast iron, semi-open or enclosed, non-clog impeller; dynamically balanced with pump out vanes for mechanical seal protection. Optional silicon bronze impeller available
- Cast iron, flanged volute type casing for maximum efficiency
- Dual Mechanical Seals
- Seal Sensor Probe
- Corrosion resistant, 400 series stainless steel shaft
Read More
General Description
Residential Submersible 2″ Non-Clog Sewage Pumps Dual Seal with Seal Sensor Probe 3WD
Downloads
3WS Submersible Sewage Pump
Product Features
300 Series stainless steel fasteners
20’ Power cord
Standard silicon carbide/silicon carbide outer (lower) seals
Impeller: Cast iron, ASTM A48, Class 30, two vane semi-open, non-clog design with pump out vanes for mechanical seal protection. Dynamically balanced for smooth operation. silicon bronze impeller is an option.
Casing: Heavy duty gray cast iron, ASTM A48, Class 30. Volute type casing with 3″, 125#, flanged, horizontal discharge conforming to ANSI standards. Compatible with A10-30 cast iron or A10-30B cast iron and brass (non- sparking) guide rail assembly.
Dual Mechanical Seals: Silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, stainless steel metal parts, BUNA-N elastomers. Upper and lower shaft seals are positioned independently and are separated by an oil-filled chamber.
Components: Capable of running dry without damage to components.
Read More
General Description
Submersible Sewage Pump 3” Flanged Discharge, 21⁄2” Solids Handling.
Specifically designed for the following uses: Sewage systems, flood and pollution control, dewatering/effluent, farms, hospitals, trailer courts, motels.
Downloads
4NS 4″ Non-Clog Sewage Pumps
Product Features
- Cast iron, two vane closed design impeller for high efficiency and maximum wear life
- Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
- Heavy duty cast iron, volute type casing for maximum efficiency
- Dual Mechanical Seals
- Designed for Continuous Operation
Read More
General Description

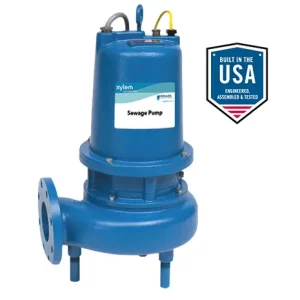

4SD Non-Clog Dual Seal with Seal Sensor Probe
Product Features
- Cast iron, two-vane, semi-open, non-clogging impeller with pump-out vanes for mechanical seal protection (optional silicon bronze impeller available)
- Balanced impeller for smooth operation
- Heavy-duty, cast iron, volute type casing for maximum efficiency
- Dual mechanical seals with stainless steel parts and BUNA-N elastomers (outer seal features silicon carbide/silicon carbide & inner seal features carbon/ ceramic sealing faces)
- Upper and lower shaft seals are positioned independently and separated by an oil-filled chamber
- Three (3) year standard warranty/Four (4) year GPDA
Read More
General Description
The 4SD Series cast iron sewage pumps feature a non-clog dual seal design, providing a layer of protection between the fluid being pumped and the sensitive electronics of the motor. When equipped with an optional seal fail probe and wired into a panel, the pumps warn of a potential leak before severe damage occurs. The 4SD pump features a 4” discharge with 3” solids handling. Backed by over 170 years of dedicated service and support, these “Complete. Reliable. Blue.” pumps are great solutions for residential, light commercial and industrial settings.
Downloads

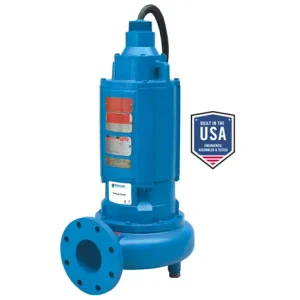

4SDX – Explosion Proof 4″ Sewage Pump
Product Features
- Cast iron, ASTM A48, Class 30, two vane semi-open not-clog design impeller with pump out vanes for mechanical seal protection
- Heavy duty gray cast iron, ASTM A48, Class 30 Volute type casing with 4″, 125#, flanged, horizontal discharge conforming to ANSI standards
- Tandem mechanical seal system in an oil filled seal chamber. Each seal operates indepentently to ensure fail safe performance
- Explosion Proof Motor for use in hazardous locations. Rated Class 1, Groups C & D
- All motors conform to the latest requirements of NEMA, IEEE, ANSI and NEC standards
Read More
General Description
Commercial Explosion Proof Submersible Sewage Pumps 4SDX
4″ Discharge Submersible Sewage Pump with Explosion Proof Motor
Downloads

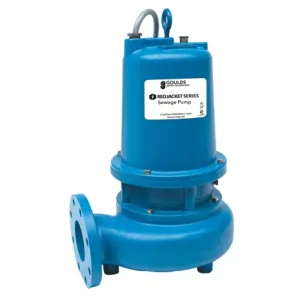

4WS Submersible Sewage Pump
Product Features
Standard silicon carbide/silicon carbide outer (lower) seals
Impeller: Cast iron, ASTM A48, Class 30, two vane semi-open, non-clog design with pump out vanes for mechanical seal protection. Dynamically balanced for smooth operation. silicon bronze impeller is an option.
Casing: Heavy duty gray cast iron, ASTM A48, Class 30. Volute type casing with 4″, 125#, flanged, horizontal discharge conforming to ANSI standards. Compatible with A10-40, A10- 60 cast iron or A10-40B, A10-60B cast iron and brass (non-sparking) guide rail assembly.
Dual Mechanical Seals: Silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, stainless steel metal parts, BUNA-N elastomers. Upper and lower tandem mounted shaft seals are positioned independently and are separated by an oil-filled chamber.
Components: Capable of running dry without damage to components.
Read More
General Description
4WS Submersible Sewage Pump
4″ Flanged Discharge, 3″ Solids Handling
Specifically designed for the following uses: Sewage systems, flood and pollution control, dewatering/effluent, farms, hospitals, trailer courts, motels.
Downloads

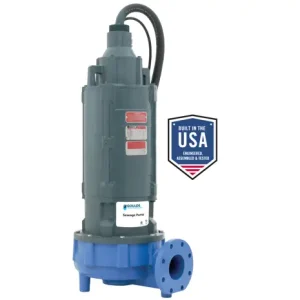

4XD 4″ Non-Clog Explosion Proof Sewage Pumps
Product Features
- Cast iron, two vane closed design impeller for high efficiency and maximum wear life
- Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
- Dual Mechanical Seals
- Seal Sensor Probe
Read More
General Description
Commercial Submersible Explosion Proof Sewage Pumps 4XD
Downloads

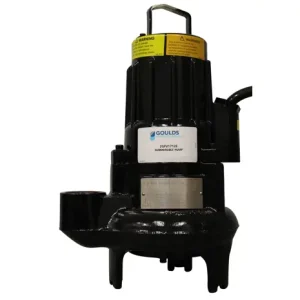

GFV Series Submersible Sewage Pump
Product Features
- Vortex-style impeller can handle solids up to 2″ in size and resists clogging better than a traditional two-vane impeller
- Robust: Components are made from robust cast iron for long life and easy maintenance
- Powerful: An efficient air-filled motor provides built-in thermal overload allowing the pump to run continuously without overheating
- Durable: Heavy-duty long life bearings provide peace of mind
- Safe and straightforward: The cable entry prevents both cable strain and leakage
- Smooth: The double mechanical seal provides extra reliability and protects against leakage*
- Flexible: 2” threaded vertical discharge allows for a variety of installations
- Installation Options: Pump has a built in dual seal and sensors for high temperature and seal leak detection which accommodate upgraded panel installations
* Upgraded installation required for sealed leak detection
Read More
General Description
PROVEN TO DELIVER DEPENDABLE PERFORMANCE:
Based on technology developed and tested in tough environments throughout the world, count on the GFV series to ensure reliability and reduce downtime in harsh residential, light commercial and industrial wastewater applications.
APPLICATION:
Anywhere waste or drainage must be disposed of quickly, quietly and efficiently.
• Homes, Sewage systems, Dewatering/effluent, Water transfer
Downloads

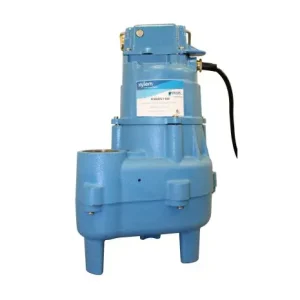

GSD Series Submersible Sewage Pump
Product Features
- Premium mechanical seal design provides superior protection against sand and abrasive damage (silicon carbide/silicon carbide)
- Cast iron motor housing and oil filled construction for optimal heat dissipation
- Cast iron recessed vortex impeller for durable performance
- Corrosion resistant stainless steel (300 series) motor shaft and hardware for lifetime use
- Reliable mechanical switch coupled with a solid float for consistent on and off operation (automatic version)
- Built in anti-siphon hole to prevent air locking
- Engineered motor designed for peak hydraulic performance without overloading
- Approved for residential use (CSA/CUS Listed)
- Three (3) year standard warranty/ four (4) year GPDA warranty
Read More
General Description
PREMIUM FEATURES. LASTING PERFORMANCE.
The GSD Series is a durable cast iron, submersible sewage pump with premium features and long lasting performance. It’s designed to handle residential sewage systems, water transfer, heavy duty sump and dewatering applications. Available as an automatic or manual, 115v, single phase pump with a 2” NPT and a cast iron recessed vortex impeller for durable performance.
Downloads
