Goulds Sewage Pumps
Represented by Ameejee Valleejee & Sons (Pvt.) Ltd. in Pakistan

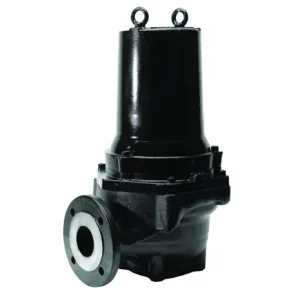

GV Plus Vortex Wastewater Pumps
Product Features
- Impeller: Cast iron multi-vane vortex style, with rip vane on the back edge of the impeller for removing stringy solids.
- V model designation for vortex impeller
- Casing: Cast Iron construction with large unobstructed passage way to pass large solids.
- Efficient air-filled motor
- Dual Mechanical Seals: For standard and Explosion Proof models, Tungsten Carbide vs. Ceramic seal faces standard on outer seals. Carbon vs. Ceramic seal faces standard on inner seals. All elastomers shall be nitrile.
- Seal Sensor / High Temperature Probe: Located in motor housing. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires minicas device in the control panel.
- Capable of running dry without damage to components.
- Designed for continuous operation, when fully submerged.
- Explosion-proof FM available as option. FM approved.
- Shaft: Corrosion resistant, 400 series stainless steel. Taper lock and impeller bolt on all models to guard against component damage on accidental reverse rotation.
- Fasteners: 300 series stainless steel.
- Grease for life bearings
Read More
General Description
The Goulds Water Technology Pumps line of GV Plus submersible vortex sewage pumps is designed for maximum durability and reliability for building services applications. They feature a vortex style dynamically balanced impeller, dual mechanical seal and float leakage sensor. The pumps are designed for continuous operation when fully submerged and are capable of running dry without damage to components.
Specifically designed for use in: Sewage systems, Dewatering/Effluent, Water transfer, Light industrial, and Commercial applications.
Anywhere waste or drainage must be disposed of quickly, quietly and efficiently.

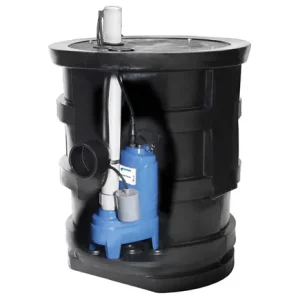

Plumber Wastewater Package Systems – with PS and PV Pumps Pump/Basin Packages
Product Features
- Eight (8) bolt structural foam cover is strong and corrosion resistant
- Fully assembled at the factory
- Ribbed polyethylene basin for strength and durability
- Schedule 40, 2″ PVC discharge pipe with 1/8″ bleed hole is factory installed
- Vent grommets for both 2″ and 3″, vent provided
Read More
General Description
The GWP is sewage pump package that comes pre-assembled from the factory allowing for easy installation on site, minimizing installation labor and costs. Pump options include PV Vortex, PS non-clogging or WW05 Vortex Pumps, all of which can handle wastewater containing solids up to 2″. Basin sizes include 18″x30″ or 23″x30″. It’s an ideal solution anywhere waste or drainage must be disposed of quickly and efficiently.
Downloads

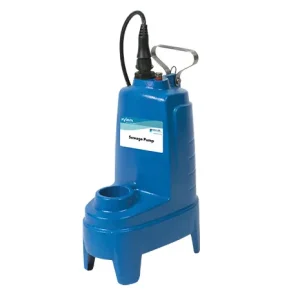

PS Sewage Pumps
Product Features
- Corrosion resistant construction
- Cast iron body
- Thermoplastic impeller and cover
- Upper sleeve and lower heavy-duty ball bearing construction
- Motor is permanently lubricated for extended service life
- Replaceable power cord, heavy duty 16/3 SJTW with NEMA three prong, 115-volt grounding plug
- Complete unit is heavy duty, portable and compact
- Mechanical seal is carbon ceramic, BUNA and stainless steel
- Stainless steel fasteners
- Powered for continuous operation
- Three (3) year standard warranty/Four (4) year GPDA
Read More
General Description
The PS Series is a compact cast iron sewage pump, featuring a semi-open style impeller. This pump is available in both automatic and manual versions, with 10’ & 20’ cord lengths. It features a 2” NPT discharge and offers 2” solids handling. Backed by over 170 years of dedicated service and support, this “Complete. Reliable. Blue.” pump is ideal for residential sewage systems and heavy sump applications.
Downloads

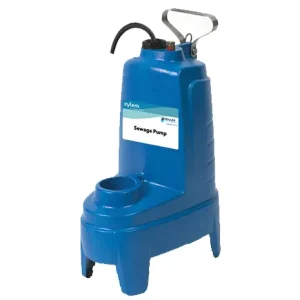

PV Submersible Vortex Sewage Pump
Product Features
- Corrosion resistant construction
- Cast iron body
- Thermoplastic impeller and cover
- Upper sleeve and lower heavy-duty ball bearing construction
- Motor is permanently lubricated for extended service life
- Powered for continuous operation
- Vortex impeller is recessed to allow free flow through casing
- Complete unit is heavy duty, portable and compact
- Mechanical seal is carbon ceramic, BUNA and stainless-steel
- Three (3) year standard warranty/Four (4) year GPDA
Read More
General Description
The PV Series is a compact cast iron sewage pump featuring a vortex impeller. This pump is available in both automatic and manual versions, with 10’ & 20’ cord lengths. It features a 2” NPT discharge and offers 2” solids handling. Backed by over 170 years of dedicated service and support, this “Complete. Reliable. Blue.” pump is ideal for residential sewage systems and heavy sump applications.

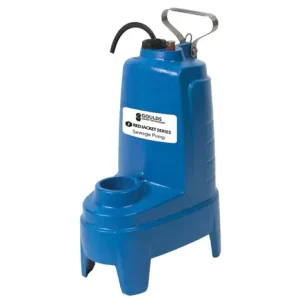

RVW Submersible Vortex Sewage Pump
Product Features
- Corrosion resistant construction.
- Cast iron body.
- Thermoplastic impeller and cover.
- Upper sleeve and lower heavy duty ball bearing construction.
- Motor is permanently lubricated for extended service life.
- Powered for continuous operation.
- Vortex impeller is recessed to allow free flow through casing.
- All ratings are within the working limits of the motor.
- Replaceable power cord, 10′ and 20′ standard lengths, heavy duty 16/3 SJTW with NEMA three prong, 115 or 230 volt grounding plug.
- Complete unit is heavy duty, portable and compact.
- Mechanical seal is carbon, ceramic, BUNA and stainless steel.
- Stainless steel fasteners.
Read More
General Description
Downloads

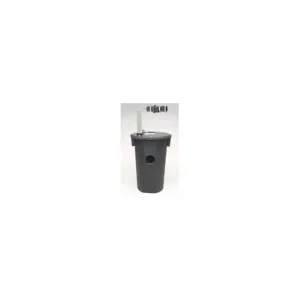

SWW0511AC – Packaged Sewage System (Obsolete)
Product Features
N/A
Read More
General Description
Effective January 2005. See GWP Plumber Wastewater Package Systems.

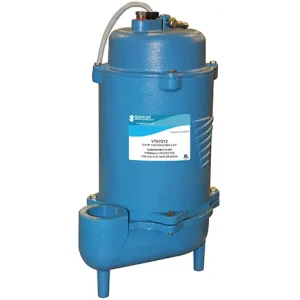

VTX Series Submersible Sewage Pump
Product Features
- A complete family of pumps ranging from ½ to 2 HP
- A “dry cap,” which makes it easy to replace the capacitor while in the field
- A new impeller design that resists clogging better than a traditional two-vane impeller
- Premium silicon carbide seals
- Oil-filled components, for constant heat dissipation and cool operation
- Thermal overload protection with automatic reset
- Single-phase PSC motors, which eliminate starting switch
Read More
General Description
Like any good vortex pump, it offers plenty of benefits to industry:
It can handle solids up to 2” in size.
Solids don’t touch the vanes.
The design minimizes clogging.
It easily passes stringy materials.
But unlike other vortex pumps, the GWT Vortex is built upon Goulds Water Technology’s reputation for reliability. That means it’s built tougher, it performs better, and it runs longer than your ordinary vortex pump.
Downloads
